Home > products > Pallet Rack Shelving > 500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks

500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNPRS-2

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price
Product Details
Highlight:

3000KGs Pallet Rack Shelving

,

500KGs Pallet Rack Shelving

,

500KGs Warehouse Shelving Racks

Material:
Steel
Size:
Customized
Color:
Customized
Feature:
Corrosion Protection
Weight Capacity:
500-4500KG
HS Code:
730890
Material:
Steel
Size:
Customized
Color:
Customized
Feature:
Corrosion Protection
Weight Capacity:
500-4500KG
HS Code:
730890
Product Description
500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks
Product Specifications
Attribute Value
Material Steel
Size Customized
Color Customized
Feature Corrosion Protection
Weight capacity 500-4500KG
HS Code 730890
Product Description

Heavy Duty Steel Pallet Racking Shelving Warehouse Pallet Racking Loading 500-3000KG

Pallet racking shelving is a specialized type of storage system designed to store materials on pallets in horizontal rows with multiple levels. This system is widely used in warehouse and industrial settings due to its efficiency in managing large inventories and maximizing storage space.

Types of Warehouse Shelving Racks
  • Selective Pallet Racking: The most common type, allowing easy access to every pallet.
  • Drive-In/Drive-Thru Racking: High-density storage solution ideal for bulk products with fewer SKUs.
  • Push-Back Racking: Uses gravity-fed telescopic carts and is suited for bulk storage and LIFO (Last In, First Out) inventory management.
  • Pallet Flow Racks: Designed for high-throughput operations and FIFO (First In, First Out) inventory systems.
  • Cantilever Racking: Best for long, bulky items. It has arms extending out from the main framework.
Key Features
  • Multi-Level Storage: Can be built upwards, utilizing vertical space efficiently.
  • Access Aisles: Designed to accommodate forklifts or pallet jacks, providing easy access to pallets.
  • Safety Features: Often equipped with safety components like rack guards, back stops, and column protectors.
Technical Specifications
Beam 80/90/100/120/140/160*50; thickness is 1.5-2.0mm
Upright 80*60; 90*70; 100*70; 120*95; thickness is 1.5-3mm
Adjustable Adjusted by 50-70mm pitch
Surface Finish Powder coating & Galvanized
Color Accept Customized
Advantages
  • Versatility: Suitable for a wide range of products and can be adapted for various pallet sizes and weights.
  • Scalability: Can be expanded or reconfigured to meet changing business needs.
  • Efficient Inventory Management: Compatible with warehouse management systems for better tracking and control.
Product Display

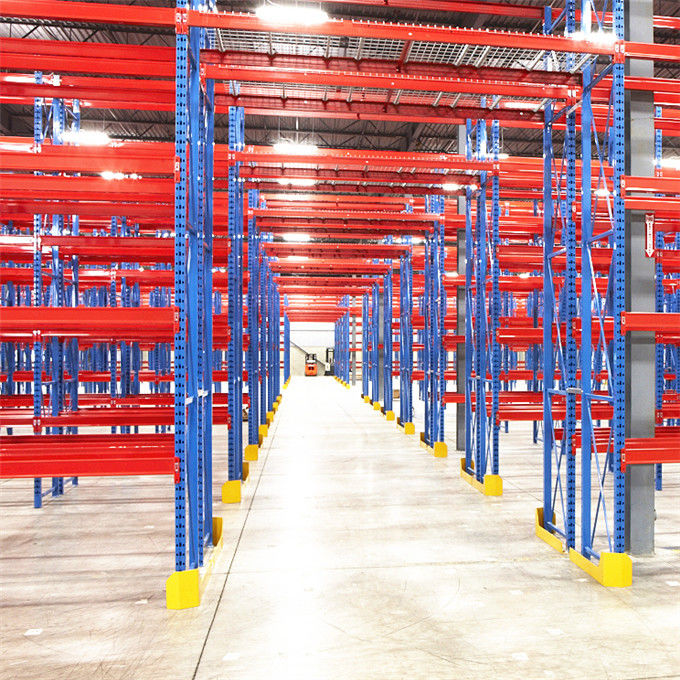

500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks 0 500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks 1
Optional Spare Parts

Mesh decking, pump protector, support bar, backing fence, row spacer.

Additional Specifications
1 Pallets can be located, accessed and moved individually
2 Rapid handling of almost all types of pallet used goods
3 Infinitely adjustable and offering a wide range of options and components to accommodate specific needs
4 Maximized space use in any warehouse configuration while retaining optimum product accessibility
5 Strength and rigidity prevents compression damage to goods
6 Bottom level of pallets can be stored on the floor, lowering structure costs
7 OEM/ODM can be accepted
Product Components
500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks 2 500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks 3
Certifications
500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks 4 500KGs-3000KGs Pallet Rack Shelving Heavy Duty Warehouse Shelving Racks 5
Frequently Asked Questions
What is your warranty?

2 year guarantee for free accessories and 10 years for the rack will not fall.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory price: factory direct sale competitive price. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
