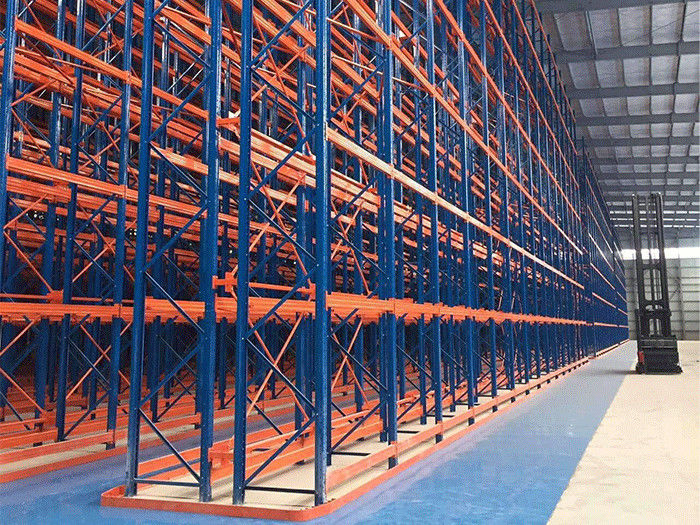

Customized Very Narrow Aisle Pallet Racking Warehouse VNA Heavy Duty

Name: Customized Very Narrow Aisle Pallet Racking Warehouse VNA Heavy Duty
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNVNA-1
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNVNA-1

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: 20 working day from we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Customized Very Narrow Aisle Pallet Racking, Warehouse VNA Heavy Duty, Very Narrow Aisle Pallet Racking Warehouse


Material:	Cold-rolled Steel	Color:	Customized
Size:	Customized	Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping	Width:	500-1500mm

Material:	Cold-rolled Steel
Color:	Customized
Size:	Customized
Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping
Width:	500-1500mm

Product Description

Customized Very Narrow Aisle Pallet Racking Warehouse VNA Heavy Duty

Product Specifications

Material	Cold-rolled Steel (Q235 Steel)
Color	Customized (RAL System)
Size	Customized (Length: 1000-8000mm, Width: 500-1500mm)
Surface treatment	Powder Coating / Galvanized
Packing	Film Wrapping
Certification	ISO 9001, SGS, CE

Product Description

Our Very Narrow Aisle (VNA) pallet racking system is a space-efficient adaptation of traditional pallet racking, designed to maximize storage capacity while minimizing aisle space requirements. With only 6 feet between racks (compared to 12 feet in standard systems), VNA racking allows for 40-50% more inventory storage within the same footprint.

Key Features

Increased Storage Capacity: Higher storage density with reduced aisle space requirements, enabling higher stacking than standard systems.
Efficient Space Utilization: Optimizes warehouse footprint by converting aisle space into additional storage capacity.
Flexible Design: Fully customizable configurations with adjustable load levels (50mm pitch) to adapt to changing storage needs.
Improved Inventory Management: Enhanced product visibility and accessibility for more accurate tracking and picking.
Enhanced Safety: Customizable safety features including automatic locking systems and fire protection measures.

Technical Specifications

Component	Specification
Support Beam	Customized length, thickness 2.0mm
Upright	8060; 9070; 10070; 12095; thickness 2-2.5mm
Adjustability	50mm pitch adjustment
Surface Finish	Powder coating & Galvanized

Product Advantages

50% reduction in aisle space compared to selective pallet racking
Supports heights exceeding 30 meters
Height-adjustable design for flexible configurations
Compatible with turret trucks for efficient operation in narrow aisles

Product Images

Certifications

Our Exhibition

Frequently Asked Questions

I'm interested in VNA pallet rack but I'm not professional. What should we do first?

Provide your warehouse dimensions and requirements for rack size, layers, and loading capacity. Our team will create a customized design for your space.

What is your warranty?

1 year guarantee for free accessories and 10 years structural warranty ensuring rack stability.

Do you support installation?

We provide detailed installation drawings. You can choose your own installation team or we can arrange our engineers for on-site guidance.

What's your purchasing process?

Design drawing → Confirm drawing → Quotation → PI → Confirm PI → 30% deposit → Manufacture → QC inspection → Balance payment → Shipping

Our Advantages

Factory-direct competitive pricing
Static calculation for seismic factors
Competitive design and structural engineering
Free consultation on storage solutions
