Spacesaving VNA Racking Multi Purpose OEM Narrow Aisle Racking System

Name: Spacesaving VNA Racking Multi Purpose OEM Narrow Aisle Racking System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNVNA-1
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNVNA-1

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: 20 working day from we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Spacesaving VNA Racking, Multi Purpose VNA Racking, OEM Narrow Aisle Racking System


Material:	Cold-rolled Steel	Color:	Customized
Size:	Customized	Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping	Width:	500-1500mm

Material:	Cold-rolled Steel
Color:	Customized
Size:	Customized
Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping
Width:	500-1500mm

Product Description

Space-saving VNA Racking Multi Purpose OEM Narrow Aisle Racking System

Product Specifications

Material	Cold-rolled Steel
Color	Customized
Size	Customized
Surface treatment	Powder Coating / Galvanized
Packing	Film Wrapping
Width	500-1500mm

High Space Saving Multi Purpose Warehouse Storage Racks

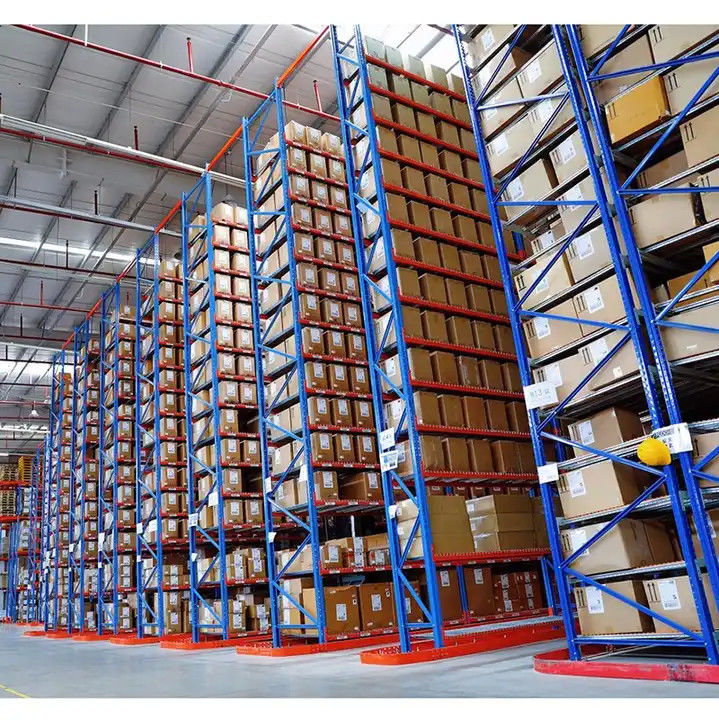

Very Narrow Aisle Pallet Racking (VNA) uses pallet racking as the main structure with guide rails installed on both sides of the aisle. These rails, made from unequal angle steel, allow specialized forklifts to operate in aisles slightly wider than the pallet, enabling high-density storage while maintaining 100% selective access to all goods.

Key Features

90% picking efficiency, ideal for heavy palletized goods
Durable araldite static powder coating surface finish
High strength construction for easy installation
Individual pallet access and movement
Handles nearly all types of palletized goods
Floor-level storage reduces structural costs
Rigid structure prevents product compression damage
Fully adjustable with customizable components
Maximizes warehouse space while maintaining accessibility

Technical Specifications

Product Name	VNA Pallet Rack
Material	Q235 Steel
Certification	ISO 9001, SGS
Design	CAD
Length	1000-8000mm
Width	900-1500mm
Surface Finish	Power coated
Applications	Forklift operation; industrial warehouses, cold storage

Structural Components

Support Beam	Custom length, 2.0mm thickness
Upright	8060; 9070; 10070; 12095; 2-2.5mm thickness
Adjustability	50mm pitch adjustment
Color Options	RAL System or customized

Key Advantages

50% less aisle space compared to selective pallet racking
Supports heights exceeding 30 meters
Fully height adjustable configuration

Product Gallery

Certifications

Our Exhibition

Frequently Asked Questions

I'm interested in VNA pallet rack but need professional guidance - what should I do first?

Provide your warehouse dimensions and requirements for rack size, layers, and loading capacity. We will create a customized design for your needs.

What is your warranty policy?

We offer 1 year guarantee for accessories and 10 years structural warranty ensuring the rack system remains stable and secure.

Do you provide installation support?

We supply complete installation drawings. You can either use your own installation team or we can arrange professional engineers for on-site guidance.

What is your purchasing process?

Design drawing → Drawing confirmation → Quotation → Proforma Invoice → Deposit payment (30%) → Manufacturing → Quality inspection → Balance payment → Shipping

What are your competitive advantages?

Factory-direct competitive pricing
Seismic factor static calculations
Competitive design and structural manufacturing
Free consultation on storage solutions
