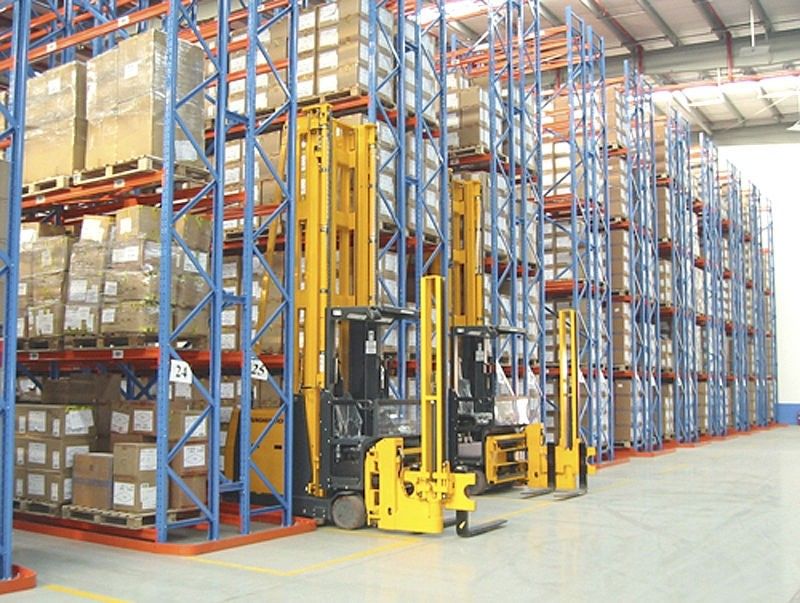

Multilayer VNA Racking System Forklift Operation VNA Pallet Racking

Name: Multilayer VNA Racking System Forklift Operation VNA Pallet Racking
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNVNA-1
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNVNA-1

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: 20 working day from we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                Multilayer VNA Racking System, Forklift Operation VNA Pallet Racking, Multilayer VNA Pallet Racking


Material:	Cold-rolled Steel	Color:	Customized
Size:	Customized	Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping	Width:	500-1500mm

Material:	Cold-rolled Steel
Color:	Customized
Size:	Customized
Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping
Width:	500-1500mm

Product Description

Multilayer VNA Racking System Forklift Operation VNA Pallet Racking

Product Specifications

Material	Cold-rolled Steel (Q235 Steel)
Color	Customized (RAL System)
Size	Customized (Length: 1000-8000mm, Width: 500-1500mm)
Surface Treatment	Powder Coating / Galvanized
Packing	Film Wrapping
Certification	ISO 9001, SGS, CE

Product Description

Our Industrial Warehouse Multi-Layers Heavy Duty VNA (Very Narrow Aisle) Storage Racking System is an optimized adaptation of traditional pallet racking designed for maximum space efficiency. With aisle widths less than 6 feet (compared to 12 feet in standard systems), this solution increases storage capacity by up to 50% in the same footprint while maintaining full accessibility with specialized turret trucks.

Key Features

Specialized design for very narrow aisle applications
50% space savings compared to standard racking systems
Modular design for easy installation and adjustment
4000kg maximum load capacity per level
Adjustable level height (50mm or 75mm pitch)
Compatible with all standard palletized goods
Floor placement option for lowest level pallets
Requires specialized three-way forklift operation

Technical Specifications

Component	Specification
Support Beam	Customized length, 2.0mm thickness
Upright	8060; 9070; 10070; 12095; 2-2.5mm thickness
Adjustment	50mm pitch adjustment
Surface Finish	Powder coating & Galvanized

System Advantages

50% reduced aisle space compared to selective pallet racking
Supports heights exceeding 30 meters
Fully height-adjustable configuration
Factory-direct competitive pricing
Seismic factor static calculations included
Free storage solution consultation

Product Gallery

Certifications

Frequently Asked Questions

I'm interested in VNA pallet rack but need professional guidance - where should I start?

Please provide your warehouse dimensions and requirements for rack size, layers, and loading capacity. Our team will create a customized design solution for your space.

What warranty do you offer?

Our warranty includes 1 year for free accessories and 10 years structural guarantee against rack failure.

Do you provide installation support?

We supply complete installation drawings and offer two options: self-installation with our guidance, or we can arrange professional installation teams with on-site engineer supervision.

What is your purchasing process?

Our streamlined process includes: Design drawing → Drawing confirmation → Quotation → Proforma Invoice → Deposit payment (30%) → Manufacturing → Quality inspection → Balance payment → Shipping.
