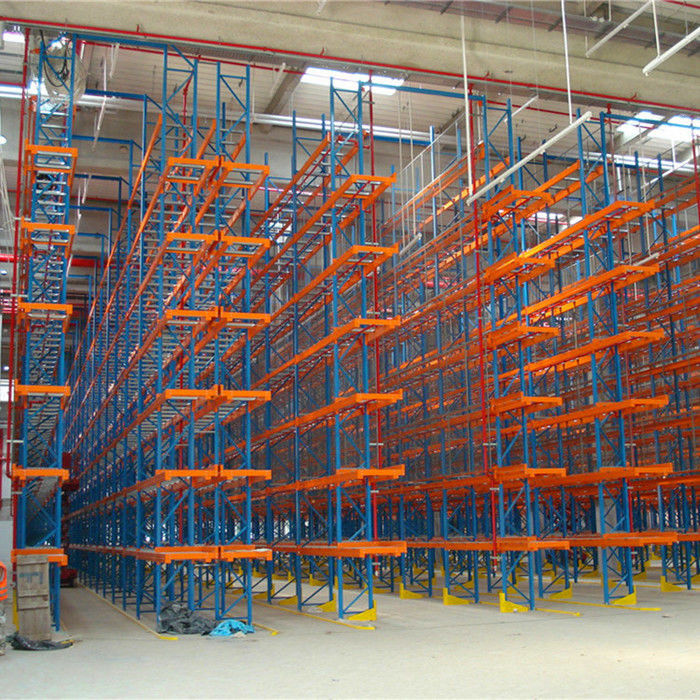

High Utilization VNA Racking 3000kgs High Density Pallet Storage

Name: High Utilization VNA Racking 3000kgs High Density Pallet Storage
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNVNA-1
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNVNA-1

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: 20 working day from we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                High Utilization VNA Racking, 3000kgs High Density Pallet Storage, VNA Racking 3000kgs


Material:	Cold-rolled Steel	Color:	Customized
Size:	Customized	Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping	Width:	500-1500mm

Material:	Cold-rolled Steel
Color:	Customized
Size:	Customized
Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping
Width:	500-1500mm

Product Description

High Utilization VNA Racking 3000kgs High Density Pallet Storage

Product Specifications

Attribute	Value
Material	Cold-rolled Steel
Color	Customized
Size	Customized
Surface treatment	Powder Coating / Galvanized
Packing	Film Wrapping
Width	500-1500mm

Product Description

UNION high utilization warehouse storage pallet vertical VNA racking system, also known as Very Narrow Aisle (VNA) racking, is designed for optimal space utilization with narrow forklift handling aisles.

Key Features

Shelf Structure: Features guide rails in addition to standard pallet rack components (frames, beams) for precise forklift navigation.
Shelf Channel: Narrow aisles (1600-2000mm) designed for three-way forklifts, eliminating traditional turning space requirements.
Storage Facilities: Requires specialized three-way stacker forklifts for operation.
Warehouse Utilization: Achieves up to 50% space efficiency with heights exceeding 10m.
Guide Rail System: 200mm height rails minimize rack damage from forklift operation.
High-Density Storage: Stacking channels slightly wider than pallets enable maximum storage density.

Product Name	Van pallet rack
Material	Q235 Steel
Certification	ISO 9001, SGS
Design	CAD
Length	1000-8000mm
Width	900-1500mm
Finished	Power coated
Used	Forklift operation; industry normal warehouse, cold warehouse

Advantages of VNA Pallet Racking

50% reduced aisle space compared to selective pallet racks
Supports heights exceeding 30m
Height adjustable configuration

Technical Specifications

Component	Specification
Support Beam	Customized length, thickness 2.0mm
Upright	8060; 9070; 10070; 12095; thickness 2-2.5mm
Adjustable	50mm pitch adjustment
Surface Finish	Powder coating & Galvanized
Color	RAL System, Accept Customized

Product Display

Drive-in Pallet Rack Components

Certifications

CE, ISO certified

Our Exhibition

Frequently Asked Questions

1. I am interested in VNA pallet rack but not professional, what should we do first?

Provide your warehouse dimensions and requirements for rack size, layers, and loading capacity for our design team to create a customized solution.

2. What is your warranty?

1 year guarantee for free accessories and 10 years structural warranty ensuring rack stability.

3. Do you support installation?

We provide detailed installation drawings. You may choose your own installation team or we can arrange professional installation with engineer supervision.

4. What is your purchasing process?

Design drawing → Confirm drawing → Quotation → PI → Confirm PI → 30% deposit → Manufacture → QC inspection → Balance payment → Shipping

5. What are your advantages?

Factory direct competitive pricing
Static calculation for seismic factors
Competitive design and structural manufacturing
Free consultation on storage solutions
