50mm Pitch VNA Racking Customized Narrow Aisle Racking System

Name: 50mm Pitch VNA Racking Customized Narrow Aisle Racking System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNVNA-1
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNVNA-1

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: 20 working day from we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                50mm Pitch VNA Racking, VNA Racking Customized, Customized Narrow Aisle Racking System


Material:	Cold-rolled Steel	Color:	Customized
Size:	Customized	Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping	Width:	500-1500mm

Material:	Cold-rolled Steel
Color:	Customized
Size:	Customized
Surface Treatment:	Powder Coating /Galvanized
Packing:	Film Wrapping
Width:	500-1500mm

Product Description

50mm Pitch VNA Racking Customized Narrow Aisle Racking System

Product Specifications

Attribute	Value
Material	Cold-rolled Steel
Color	Customized
Size	Customized
Surface treatment	Powder Coating / Galvanized
Packing	Film Wrapping
Width	500-1500mm

Product Description

Our Very Narrow Aisle (VNA) racking system is designed for warehouses requiring maximum storage density while maintaining efficient forklift access. This specialized solution optimizes vertical space utilization in facilities with limited floor area.

Key Features

Specialized pallet racking system for very narrow aisles
Maximizes storage capacity by reducing aisle space requirements
Modular design for easy installation and dismantling
4000kg maximum load capacity per level
Adjustable level height with 50mm or 75mm pitch increments
Compatible with all standard palletized goods
Ground-level pallet placement capability
Requires specialized three-way forklift operation

Technical Specifications

Component	Specification
Support Beam	Custom length, 2.0mm thickness
Upright	80×60; 90×70; 100×70; 120×95 (2-2.5mm thickness)
Adjustment	50mm pitch increments
Surface Finish	Powder coating & Galvanized options
Color	RAL System colors or customized

System Advantages

Reduces aisle space requirements by 50% compared to selective pallet racking
Supports heights exceeding 30 meters
Fully height-adjustable configuration

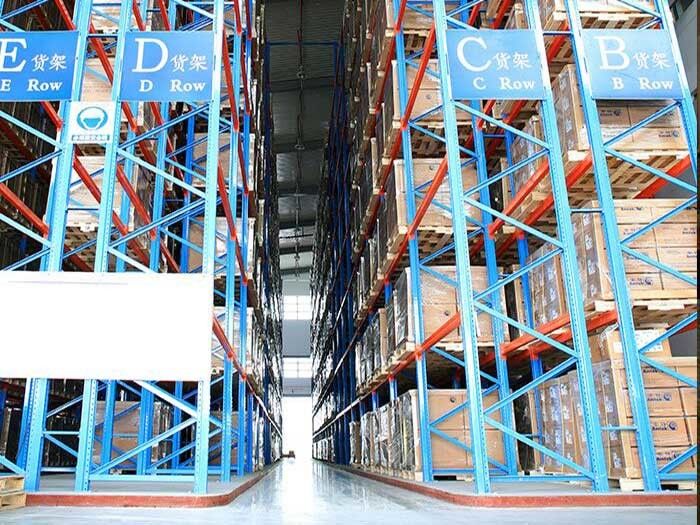

Product Gallery

Certifications

CE, ISO 9001, SGS 50mm Pitch VNA Racking Customized Narrow Aisle Racking System 4

Company Exhibition

Frequently Asked Questions

I'm interested in VNA pallet rack but need professional guidance - what should I do first?

Please provide your warehouse dimensions and requirements for rack size, number of levels, and load capacity. Our team will create a customized design for your space.

What is your warranty policy?

We offer 1 year guarantee for all accessories and a 10-year structural integrity guarantee for the racking system.

Do you provide installation support?

We supply complete installation drawings. You may choose to use your own installation team or we can arrange professional installation with on-site engineering support.

What is your purchasing process?

Our standard workflow: Design drawing → Drawing confirmation → Quotation → Proforma Invoice → Deposit payment (30%) → Manufacturing → Quality inspection → Balance payment → Shipping

What are your competitive advantages?

Factory-direct competitive pricing
Seismic factor static calculations
Expert storage solution design
Free consultation services
