FIFO And LIFO Radio Shuttle System Automated Warehouse Shuttle System

Name: FIFO And LIFO Radio Shuttle System Automated Warehouse Shuttle System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-3
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-3

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                LIFO Radio Shuttle System, FIFO Radio Shuttle System, Automated Warehouse Shuttle System


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-4500KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-4500KG
HS Code:	730890

Product Description

FIFO And LIFO Radio Shuttle System Automated Warehouse Shuttle System

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-4500KG
HS Code	730890

Product Description

Quality Guaranteed Automated Pallet Storage System Metal Radio Shuttle Rack

A shuttle pallet rack, also known as a pallet shuttle system or a pallet runner system, is a type of high-density storage solution used in warehouses and distribution centers. It utilizes a motorized shuttle device to handle the movement of pallets within a racking structure, allowing for efficient storage and retrieval operations.

System Operation

The two-way shuttle rack system typically works:

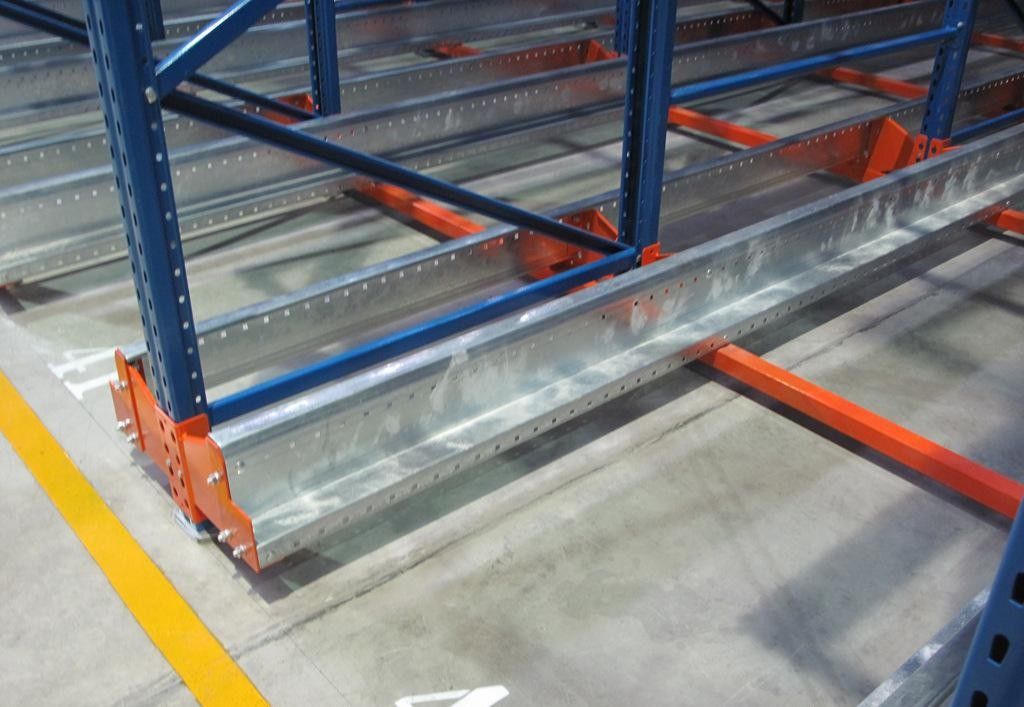

Rack Structure: The shuttle pallet rack consists of upright frames, horizontal beams, and specially designed rails or tracks that guide the shuttle device.
Shuttle Device: The shuttle device, also called a pallet shuttle or pallet runner, is a motorized platform that moves along the rails within the rack structure. It is capable of carrying and transporting pallets.

Advantages of Radio Shuttle Racking

Selectivity and Flexibility: Although radio shuttle racking systems offer high-density storage, they still provide direct access to each individual pallet. This ensures selectivity and flexibility in inventory management, allowing for efficient stock rotation and order picking.
FIFO and LIFO Options: Radio shuttle racking systems can be configured to operate in either a First-In-First-Out (FIFO) or Last-In-First-Out (LIFO) manner, depending on the specific warehousing requirements. This flexibility enables efficient management of perishable or time-sensitive goods.

Product Display

Remote Control

Charging cabinets and battery

Shuttle car

Shuttle Carrier and Pallet Runner System

A compact storage system in which a shuttle driven by an electric motor runs on rails inside the storage channels, replacing forklifts, considerably reducing operating times and enabling items to be grouped by channels rather than complete lanes.

Key Benefits

Save Space: Increased number of pallets in depth: storage channels can exceed 40 in height; the limit is imposed by the handling means used.
Save Time: Loading and unloading times are reduced, since the operator does not need to work inside the lanes. Movement speed of the shuttle of 90 in/min when empty, or 45 m/min when loaded. Load lifting cycle of just 2 seconds.
Save Money: The result of the benefits mentioned previously, together with the consumption of energy, is a reduction in costs, making Pallet Shuttle one of the most cost-effective compact storage systems.

Shuttle Car Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250,D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certificate

Exhibitions

Frequently Asked Questions

1. What is your warranty?

2 year guarantee for free accessories and 10 years for the rack will not fall.

2. How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

3. What's your advantage?

Factory price: factory direct sale competitive price.
Warranty: Two years warranty, the broken parts will be replaced and sent to you.
