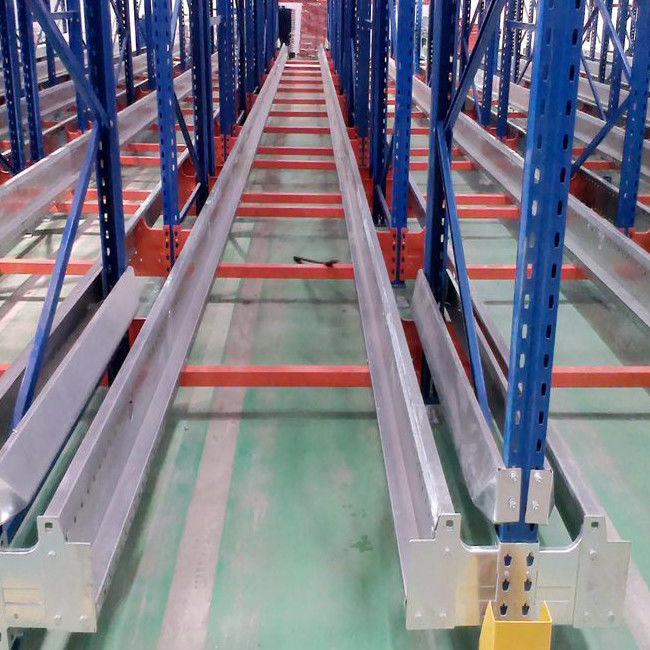

High Efficiency Pallet Shuttle Rack Warehouse Radio Shuttle Pallet Racking

Name: High Efficiency Pallet Shuttle Rack Warehouse Radio Shuttle Pallet Racking
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-3
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-3

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                High Efficiency Pallet Shuttle Rack, Warehouse Radio Shuttle Pallet Racking, Pallet Shuttle Rack Warehouse


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-4500KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-4500KG
HS Code:	730890

Product Description

High Efficiency Pallet Shuttle Rack Warehouse Radio Shuttle Pallet Racking

Product Specifications

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-4500KG
HS Code	730890

Product Overview

A shuttle pallet rack, also known as a pallet shuttle system or pallet runner system, is an advanced pallet rack solution that utilizes semi-automated shuttle devices to move pallets within the rack structure. This system enhances storage density and operational efficiency in high-density warehousing environments.

Two-way shuttle rack systems are ideal for warehouses and distribution centers requiring high-density storage and efficient goods handling. They provide increased storage capacity, improved operational efficiency, and flexible inventory management, leading to greater productivity and cost savings.

Key Advantages of Radio Shuttle Racking

Increased Throughput: Accelerates storage and retrieval processes with independent shuttle devices that quickly transport pallets to desired locations, reducing forklift navigation time.
Improved Efficiency: Remote-controlled shuttle operation eliminates manual pallet handling, reducing labor requirements and minimizing accident risks.

System Components

Remote Control

Charging cabinets and battery

Shuttle car

Shuttle Carrier System Features

This compact storage system features an electric motor-driven shuttle that runs on rails inside storage channels, replacing forklifts and significantly reducing operating times. The system enables item grouping by channels rather than complete lanes.

Space Saving: Storage channels can exceed 40 in height (limited only by handling equipment)
Time Saving: Loading/unloading times reduced with 90 in/min shuttle speed (empty) and 45 m/min (loaded)
Cost Saving: Energy-efficient operation makes this one of the most cost-effective compact storage systems

Shuttle Car Technical Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250,D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certifications

Trade Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years for the rack structural integrity.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory price: factory direct sale competitive price. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
