1.5T Radio Shuttle Racking 500kgs-2000kgs Pallet Shuttle System

Name: 1.5T Radio Shuttle Racking 500kgs-2000kgs Pallet Shuttle System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-14
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-14

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                1.5T Radio Shuttle Racking, Radio Shuttle Racking 500kgs, 2000kgs Pallet Shuttle System


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Power Coating
Type:	Radio Shuttle Rack	Weight Capacity:	500-2000KG
HS Code:	73089090000

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Power Coating
Type:	Radio Shuttle Rack
Weight Capacity:	500-2000KG
HS Code:	73089090000

Product Description

1.5T Radio Shuttle Racking 500kgs-2000kgs Pallet Shuttle System

Product Specifications

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Power Coating
Type	Radio Shuttle Rack
Weight capacity	500-2000KG
HS Code	73089090000

Product Description

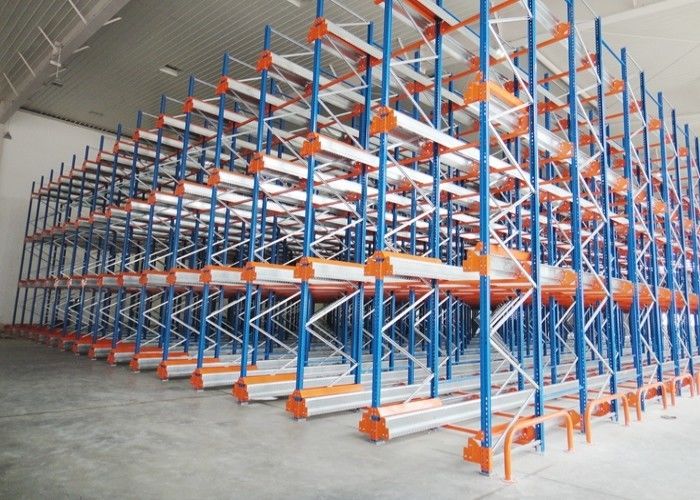

Heavy Duty Warehouse Shelving Steel Pallet Racking System Radio Shuttle Rack is an advanced storage solution that utilizes semi-automated shuttle devices to move pallets within the rack structure. This system maximizes storage density and improves operational efficiency in high-density warehousing environments.

Key Advantages of Radio Shuttle Racking

Radio Control System: Operators use handheld radio transmitters or control panels to command shuttle devices for storage, retrieval, or pallet relocation.
High-Density Storage: Eliminates aisle requirements between rack rows, maximizing available space utilization with deep storage capabilities.

System Components

Remote Control

Charging cabinets and battery

Shuttle car

Shuttle Carrier and Pallet Runner System

A compact storage solution where electric motor-driven shuttles operate on rails within storage channels, replacing forklifts and significantly reducing operating times. This system enables item grouping by channels rather than complete lanes.

Key Benefits

Space Saving: Storage channels can exceed 40 in height, limited only by handling equipment.
Time Saving: Loading/unloading times reduced with shuttle speeds of 90 in/min (empty) or 45 m/min (loaded).
Cost Saving: Energy-efficient operation makes this one of the most cost-effective compact storage systems.

Shuttle Car Technical Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250,D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certifications

Trade Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years for the rack structural integrity.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory direct pricing with competitive rates. Two-year warranty with replacement parts shipped to you.
