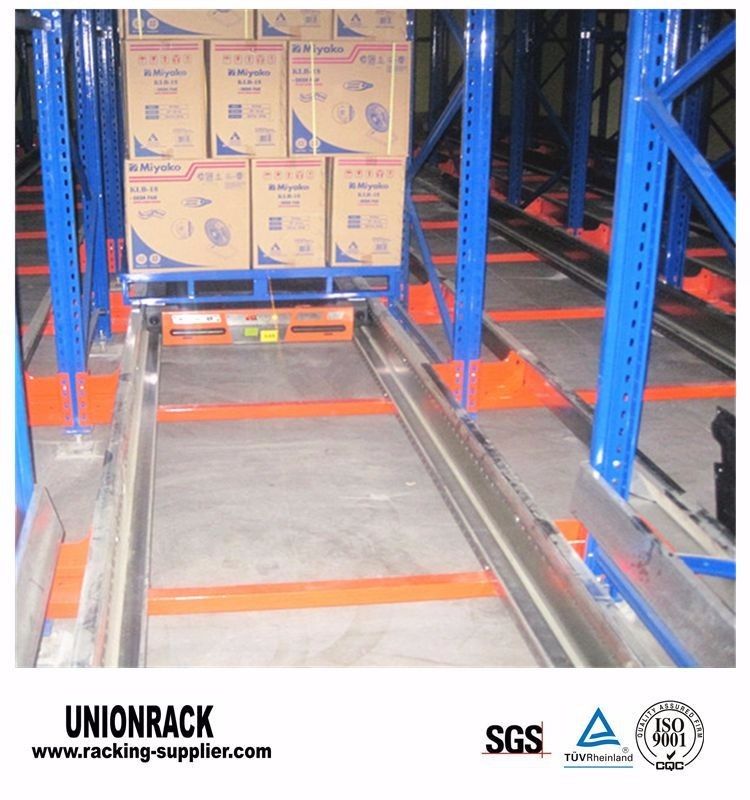

500kgs-4500kgs Shuttle Racking System Blue Orange Radio Pallet Shuttle

Name: 500kgs-4500kgs Shuttle Racking System Blue Orange Radio Pallet Shuttle
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-3
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-3

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                4500kgs Shuttle Racking System, 500kgs Shuttle Racking System, Blue Orange Radio Pallet Shuttle


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-4500KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-4500KG
HS Code:	730890

Product Description

500kgs-4500kgs Shuttle Racking System Blue Orange Radio Pallet Shuttle

Product Specifications

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-4500KG
HS Code	730890

Product Description

A shuttle pallet rack, also known as a pallet shuttle system or a pallet runner system, is an advanced type of pallet rack that utilizes a semi-automated shuttle device to move pallets within the rack structure. This system is designed to increase storage density and improve operational efficiency in high-density warehousing environments.

Key Advantages of Radio Shuttle Racking

Radio Control System: Shuttle racks utilize a radio control system to communicate with and control the shuttle devices. Operators can use handheld radio transmitters or control panels to send commands to the shuttle devices.
High-Density Storage: By eliminating the need for aisles between rack rows, shuttle racks maximize the use of available space. The shuttle devices can access multiple levels of the rack, allowing for deep storage and efficient utilization of vertical height.

Product Components

Shuttle Carrier System Features

A compact storage system in which a shuttle driven by an electric motor runs on rails inside the storage channels, replacing forklifts, considerably reducing operating times and enabling items to be grouped by channels rather than complete lanes.

Space Saving: Increased number of pallets in depth with storage channels that can exceed 40 in height.
Time Saving: Loading and unloading times are reduced with shuttle movement speed of 90 in/min when empty or 45 m/min when loaded.
Cost Saving: Reduced operational costs make Pallet Shuttle one of the most cost-effective compact storage systems.

Shuttle Car Technical Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250,D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certifications

Trade Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years for the rack will not fall.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory price: factory direct sale competitive price. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
