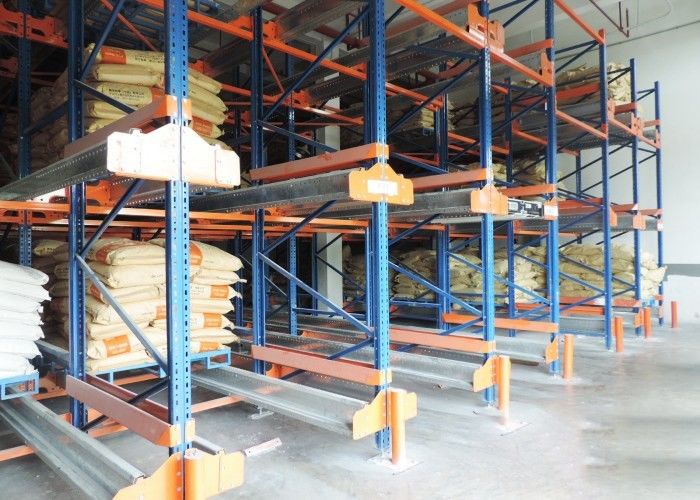

500KG-4500KG Shuttle Racking Customized Shuttle Pallet Racking System

Name: 500KG-4500KG Shuttle Racking Customized Shuttle Pallet Racking System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-3
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-3

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                4500KG Shuttle Racking, 500KG Shuttle Racking, Customized Shuttle Pallet Racking System


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-4500KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-4500KG
HS Code:	730890

Product Description

500KG-4500KG Shuttle Racking Customized Shuttle Pallet Racking System

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-4500KG
HS Code	730890

Product Overview

A shuttle pallet rack, also known as a pallet shuttle system or pallet runner system, is an advanced storage solution that utilizes semi-automated shuttle devices to move pallets within the rack structure. This system maximizes storage density and improves operational efficiency in high-density warehousing environments.

Shuttle pallet rack systems are ideal for warehouses and distribution centers handling large quantities of palletized goods, offering significant advantages in storage capacity, operational efficiency, and system integration.

Key Advantages of Radio Shuttle Racking

Maximized Storage Capacity: Efficiently utilizes vertical space by eliminating aisle space between rack rows, allowing more racks in the same area with multi-level access.
High-Density Storage: Shuttle devices move pallets deep into the rack structure, enabling multiple pallets per lane and optimizing available space.

System Components

Remote Control

Charging Cabinets and Battery

Shuttle Car

Shuttle Carrier Technology

Our compact storage system features an electric motor-driven shuttle that runs on rails inside storage channels, replacing forklifts and significantly reducing operating times. This innovative design allows item grouping by channels rather than complete lanes.

Space Saving: Storage channels can exceed 40 in height (limited only by handling equipment).
Time Saving: Loading/unloading times reduced with shuttle speeds of 90 in/min (empty) or 45 m/min (loaded), plus 2-second load lifting cycles.
Cost Saving: Energy-efficient operation combined with space and time savings makes this one of the most cost-effective compact storage systems available.

Shuttle Car Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250, D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certifications

Trade Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years structural warranty ensuring the rack will not fall.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory price: Direct manufacturer pricing ensures competitive rates.
Warranty: Two-year comprehensive warranty with replacement parts shipped directly to you.
