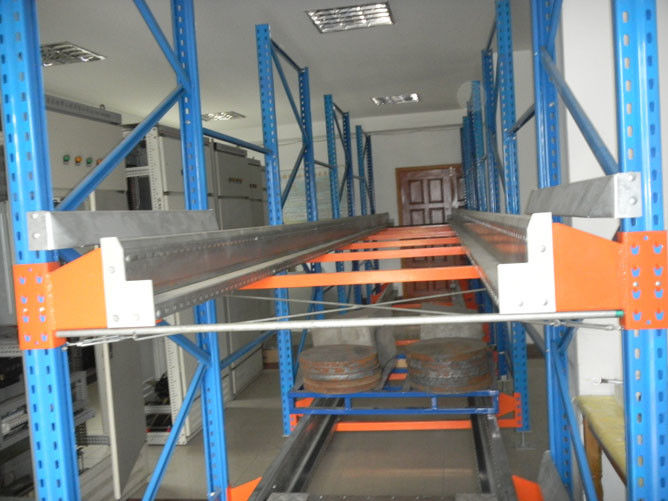

1000kgs Shuttle Racking Customized Radio Shuttle Pallet Racking

Name: 1000kgs Shuttle Racking Customized Radio Shuttle Pallet Racking
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-2
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-2

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                1000kgs Shuttle Racking, Shuttle Racking Customized, Customized Radio Shuttle Pallet Racking


Material:	Steel	Size:	Customized
Color:	Customized	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-4500KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Customized
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-4500KG
HS Code:	730890

Product Description

1000kgs Shuttle Racking Customized Radio Shuttle Pallet Racking

Product Specifications

Attribute	Value
Material	Steel
Size	Customized
Color	Customized
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-4500KG
HS Code	730890

1000KG High Density Industrial Steel Shuttle Racking System

A shuttle pallet rack, also known as a pallet shuttle system or pallet runner system, is an advanced pallet rack that utilizes a semi-automated shuttle device to move pallets within the rack structure. This system increases storage density and improves operational efficiency in high-density warehousing environments.

Key Advantages

Increased Storage Density: Maximizes storage capacity by eliminating aisle space between racks. Multiple shuttles can operate simultaneously within the same rack.
Improved Efficiency: The semi-automated system reduces forklift dependency and manual labor, enabling faster storage and retrieval processes.

System Components

Remote Control

Charging cabinets and battery

Shuttle car

Shuttle Carrier Technology

A compact storage system where an electric motor-driven shuttle runs on rails inside storage channels, replacing forklifts. This technology reduces operating times and enables item grouping by channels rather than complete lanes.

Operational Benefits

Space Saving: Storage channels can exceed 40 in height (limited only by handling equipment)
Time Saving: Loading/unloading times reduced as operators don't work inside lanes. Shuttle speed: 90 in/min empty, 45 m/min loaded. Load lifting cycle: just 2 seconds.
Cost Saving: Combined benefits with energy efficiency make this one of the most cost-effective compact storage systems.

Shuttle Car Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250,D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certification

Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years for the rack will not fall.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory price: factory direct sale competitive price. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
