Load 2000KG Shuttle Radio Racking Q235 Steel Warehouse Shuttle System

Name: Load 2000KG Shuttle Radio Racking Q235 Steel Warehouse Shuttle System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-6
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-6

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                Load 2000KG Shuttle Radio Racking, Q235 Steel Warehouse Shuttle System, 2000KG Warehouse Shuttle System


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-4500KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-4500KG
HS Code:	730890

Product Description

Load 2000KG Shuttle Radio Racking Q235 Steel Warehouse Shuttle System

Product Specifications

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-4500KG
HS Code	730890

Product Description

A shuttle pallet rack, also known as a pallet shuttle system or pallet runner system, is an advanced type of pallet rack that utilizes a semi-automated shuttle device to move pallets within the rack structure. This system is designed to increase storage density and improve operational efficiency in high-density warehousing environments.

Radio shuttle rack systems are ideal for warehouses or distribution centers with high-volume storage needs, where maximizing storage capacity and optimizing operational efficiency are critical.

Key Advantages of Radio Shuttle Racking

Enhanced Efficiency: The radio-controlled automation eliminates the need for operators to physically enter the rack, reducing labor requirements and improving operational efficiency.
Selectivity and Flexibility: Despite high-density storage, each individual pallet can be accessed directly, allowing for selective storage and retrieval.

Product Components

Remote Control

Charging cabinets and battery

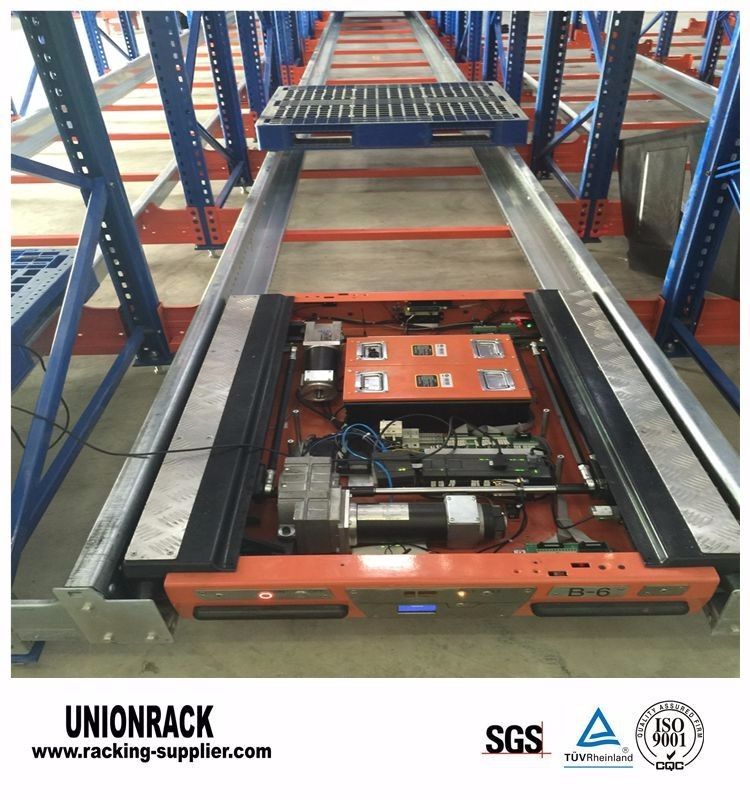

Shuttle car

Shuttle Carrier and Pallet Runner System

A compact storage system in which a shuttle driven by an electric motor runs on rails inside the storage channels, replacing forklifts, considerably reducing operating times and enabling items to be grouped by channels rather than complete lanes.

System Benefits

Space Saving: Increased number of pallets in depth - storage channels can exceed 40 in height (limited only by handling equipment).
Time Saving: Loading/unloading times reduced as operators don't need to work inside lanes. Shuttle moves at 90 in/min empty or 45 m/min loaded with 2-second load lifting cycle.
Cost Saving: Energy-efficient operation combined with productivity gains makes this one of the most cost-effective compact storage systems.

Shuttle Car Technical Specifications

Item	Type	Specification
1.	Size range available	W1100-1250, D800-1100 (mm)
2.	Deflection of pallet	Max. 20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certifications

Trade Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years for the rack structural integrity.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory price: factory direct sale competitive price. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
