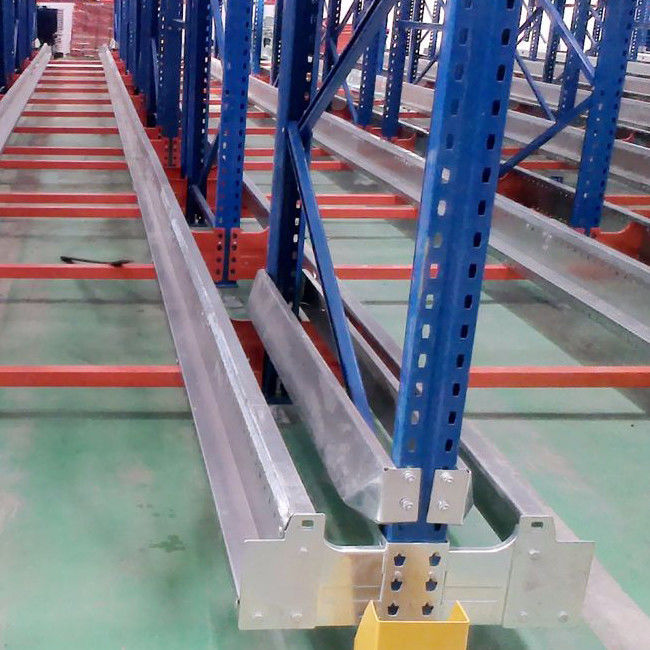

75 Pitch Pallet Shuttle Racking OEM FIFO Shuttle Pallet Racking System

Name: 75 Pitch Pallet Shuttle Racking OEM FIFO Shuttle Pallet Racking System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-8
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-8

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                75 Pitch Pallet Shuttle Racking, Pallet Shuttle Racking OEM, FIFO Shuttle Pallet Racking System


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-4500KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-4500KG
HS Code:	730890

Product Description

75 Pitch Pallet Shuttle Racking OEM FIFO Shuttle Pallet Racking System

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-4500KG
HS Code	730890

Product Overview

A two-way shuttle rack system, also known as a bidirectional shuttle rack system, is a high-density storage solution that utilizes shuttle devices capable of moving in both directions within the racking structure. This system optimizes storage capacity and improves operational efficiency in warehouse environments.

Shuttle pallet rack systems are ideal for warehouses and distribution centers handling high volumes of palletized goods while requiring efficient space utilization.

Key Advantages of Radio Shuttle Racking

Increased Storage Density: Maximizes warehouse space utilization by eliminating individual aisles between rack rows, providing higher storage density than traditional systems.
Improved Efficiency: Shuttle devices quickly and autonomously move pallets, reducing manual handling time and accelerating order fulfillment.

System Components

Remote Control

Charging cabinets and battery

Shuttle car

Shuttle Carrier Features

This compact storage system uses an electric motor-driven shuttle that runs on rails inside storage channels, replacing forklifts and significantly reducing operating times. Items can be grouped by channels rather than complete lanes.

Operational Benefits

Space Savings: Storage channels can exceed 40 in height, limited only by handling equipment.
Time Savings: Loading/unloading times reduced with shuttle movement speeds up to 90 in/min (empty) or 45 m/min (loaded).
Cost Savings: Energy-efficient operation combined with productivity gains makes this one of the most cost-effective compact storage systems.

Shuttle Car Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250,D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certifications

Trade Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years for the rack will not fall.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory price: factory direct sale competitive price. Warranty: Two years warranty, the broken parts will be replaced and sent to you.
