Easy Install Radio Pallet Shuttle Cold Rolled Warehouse Shuttle System

Name: Easy Install Radio Pallet Shuttle Cold Rolled Warehouse Shuttle System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-3
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-3

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                Easy Install Radio Pallet Shuttle, Cold Rolled Warehouse Shuttle System, Radio Pallet Shuttle Cold Rolled


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-4500KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-4500KG
HS Code:	730890

Product Description

Easy Install Radio Pallet Shuttle Cold Rolled Warehouse Shuttle System

Product Specifications

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-4500KG
HS Code	730890

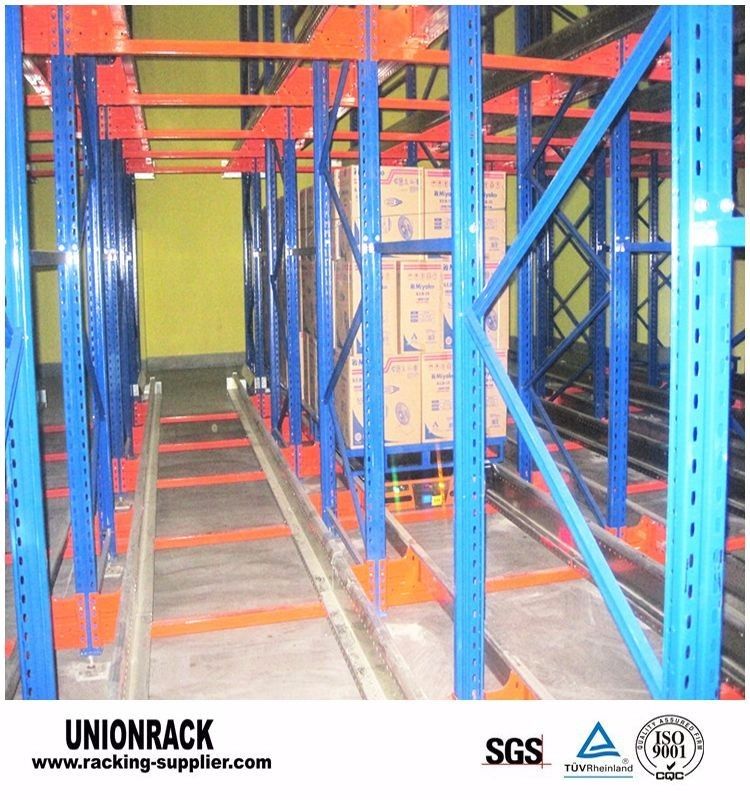

Advanced Pallet Shuttle System

Our corrosion-resistant cold rolled steel pallet shuttle system is an advanced storage solution that utilizes semi-automated shuttle devices to move pallets within the rack structure. Designed for high-density warehousing environments, this system significantly improves storage density and operational efficiency.

System Operation

The two-way shuttle rack system consists of:

Rack Structure: Upright frames, horizontal beams, and specially designed rails that guide the shuttle device
Shuttle Device: Motorized platform with sensors and controls for precise navigation and load handling

Key Advantages

Improved Efficiency: Bidirectional shuttle movement enables faster, more flexible pallet handling
Selective Access: Direct access to individual pallets for efficient stock rotation
Space Optimization: Storage channels can exceed 40 pallets in height
Time Savings: Shuttle speed of 90 m/min when empty, 45 m/min when loaded
Cost Effective: Reduced energy consumption and operational costs

Product Components

Remote Control

Charging Cabinets and Battery

Shuttle Car

Shuttle Car Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250,D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certifications

Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years for the rack structural integrity.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory direct pricing with competitive rates. Two years warranty with replacement parts shipped directly to you.
