Warehouse Shuttle Pallet Racking 500KG-3000KG Radio Shuttle Racking System

Name: Warehouse Shuttle Pallet Racking 500KG-3000KG Radio Shuttle Racking System
Brand: Jiangsu Union Logistics System Engineering Co., Ltd.
SKU: UNSR-12
Availability: InStock

Product Details

Place of Origin: Nanjing, China

Brand Name: Union

Certification: CE, ISO9001

Model Number: UNSR-12

Payment & Shipping Terms

Minimum Order Quantity: 1*20GP

Price: Negotiable

Packaging Details: wrap film packaging

Delivery Time: from the 15th working day after we receive the deposit

Payment Terms: L/C, T/T

Supply Ability: 2000T per month

Get Best Price

Product Details

Product Description

Product Details

Highlight:
                                                                                                                                                                                                                                                                                Warehouse Shuttle Pallet Racking, 500KG Shuttle Pallet Racking, 3000KG Radio Shuttle Racking System


Material:	Steel	Size:	Customized
Color:	Blue And Orange	Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack	Weight Capacity:	500-3000KG
HS Code:	730890

Material:	Steel
Size:	Customized
Color:	Blue And Orange
Feature:	Corrosion Protection
Type:	Pallet Shuttle Rack
Weight Capacity:	500-3000KG
HS Code:	730890

Product Description

Warehouse Shuttle Pallet Racking 500KG-3000KG Radio Shuttle Racking System

Product Specifications

Attribute	Value
Material	Steel
Size	Customized
Color	Blue and Orange
Feature	Corrosion Protection
Type	Pallet Shuttle Rack
Weight capacity	500-3000KG
HS Code	730890

High Quality Customized Heavy Duty Automatic Remote Warehouse Radio Shuttle Rack

A shuttle pallet rack, also known as a pallet shuttle system or a pallet runner system, is an advanced type of pallet rack that utilizes a semi-automated shuttle device to move pallets within the rack structure. This system is designed to increase storage density and improve operational efficiency in high-density warehousing environments.

Key Advantages of Radio Shuttle Racking

Scalability: Shuttle rack systems are highly scalable, allowing for easy expansion or reconfiguration as warehouse needs change over time.
Safety: Equipped with safety features including sensors, safety barriers, emergency stop buttons, and collision avoidance systems.

Product Features

Remote Control

Charging cabinets and battery

Shuttle car

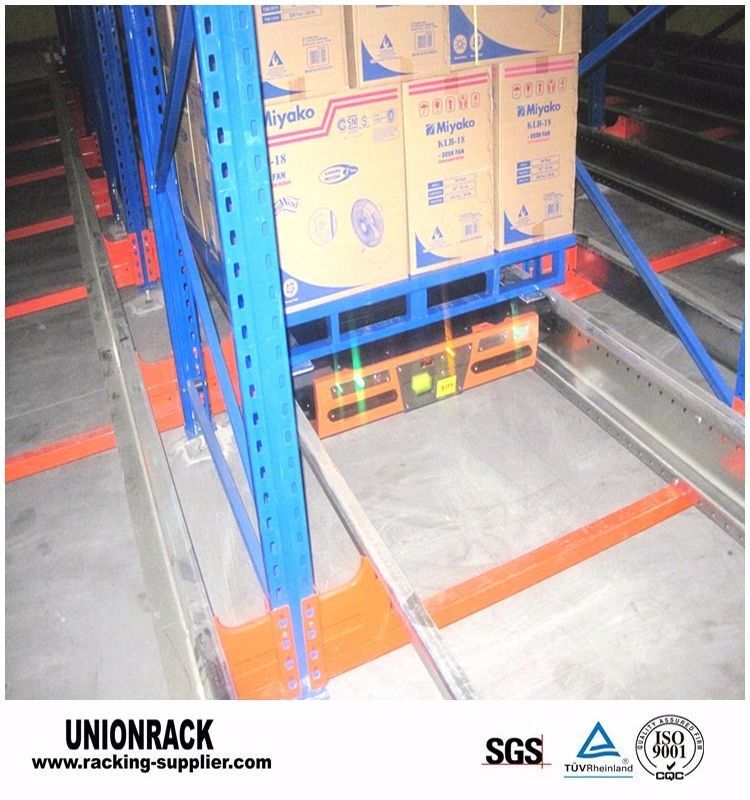

Shuttle Carrier and Pallet Runner System

A compact storage system in which a shuttle driven by an electric motor runs on rails inside the storage channels, replacing forklifts and significantly reducing operating times.

System Benefits

Space Saving: Storage channels can exceed 40 in height, maximizing vertical space utilization.
Time Saving: Loading/unloading times reduced with shuttle movement speeds up to 90 in/min when empty.
Cost Saving: Energy efficient operation makes this one of the most cost-effective compact storage systems.

Shuttle Car Technical Specifications

Item	Type	Specification
1.	Size range available(mm)	W1100-1250,D800-1100
2.	Deflection of pallet	Max.20mm
3.	Total weight of loading	Max 1500kg
4.	Running without loading	1.1m/s
5.	Running with max loading	0.5-0.9m/s
6.	Duration of charging	About 3 hours
7.	Methods of Remote control	Radio Frequency 433MHz/3.7V 1500AH
8.	Remote controller	Handheld remote control
9.	Programmable logic controller	Siemens PLC
10.	Integrated Performance	Integratable with WMS, WCS and vehicle dispatch system

Certifications

Exhibitions

Frequently Asked Questions

What is your warranty?

2 year guarantee for free accessories and 10 years for the rack structural integrity.

How to purchase your product?

Design drawing → Confirm drawing → Quotation → PI → Arrange 30% deposit → Manufacture → QC → Pay balance → Shipping

What's your advantage?

Factory direct pricing with competitive rates. Two years warranty with replacement parts shipped to you.
